Mobile Free Standing Rig - Single TBG Double Rods

Mobile - Free Standing -Single Tbg. Double Rods

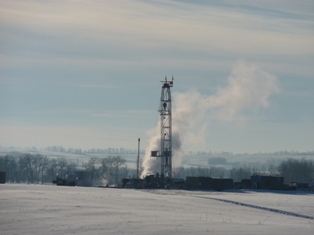

RIG 20:

2013 Free Standing KSM K550 Double Drum back in Rig

Powered by a Series 60 DDEC engine rated @ 375 HP

Transmission: Allison 4700 OFS

Main Drum Brakes: 106.6 cm x 25.4 cm

Sandline Drum Brakes: 96.5 cm x 25.4 cm

Mast: 21.95 m FSS 60,000 daN hook load with 4 lines

100 Ton Unity Rig travelling blocks

Racking Capacity: 2,500 m, 73mm tbg. in single stands

Drill Line: 22 mm, Sandline: 3000 m, 14.28 mm Polycore

On the Approved Alberta Transportation Triaxle Service Rig List

PUMP:

2004 Hyduke Mobile Pump and Tank Unit

SMC model T 165-5 x 35 mpa Triplex pump (101.6 mm x 127 mm)

Powered by a Series 60 DDEC engine rated @ 375 HP

7 valve manifold rated @ 35 mpa working pressure c/w precharge pump

Transmission: Allison 750

TANK:

29m³ tank complete with settling trough

92m - 50.8 mm line pipe with chicsan joints

Poor Boy degaser, steam coil, mud mixing equipment

DOG HOUSE:

2012 United Truck Mobile Combination Building pulled by a 2005 Model 7000 Diesel International

B.O.P.:

Hydril Sentry 179.3 mm x 35 mpa double gate

1 valve NACE trim working spool

76 litre Accumulator and controls mounted on rig

AUXILLARY EQUIPMENT:

Oil Country 58-93R Hydraulic tbg. tongs

Oil Country Model 'B' Air Slips

B. J. 100 ton tbg. elevators 60.3 mm x 73 mm tbg.

4 - 30 lb. fire extinguishers

2 - 30 minute S.C.B.A.

1 - 73 mm stabbing valves

Rod equipment up to 25.4 mm

Tubing darts for 60.3 mm & 73 mm tubing

Yanmar 40 KVA power plant
